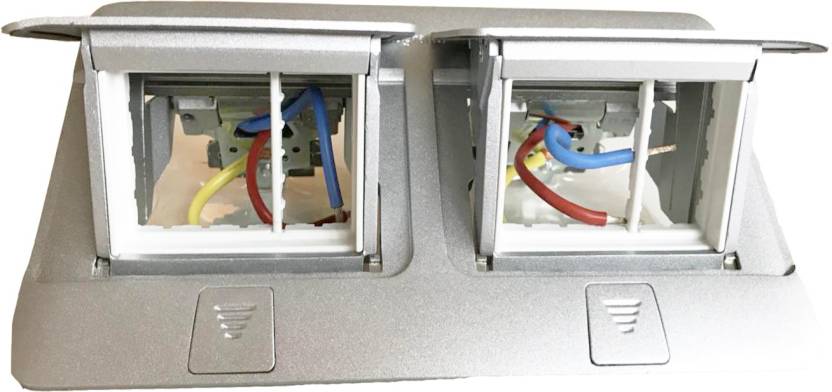

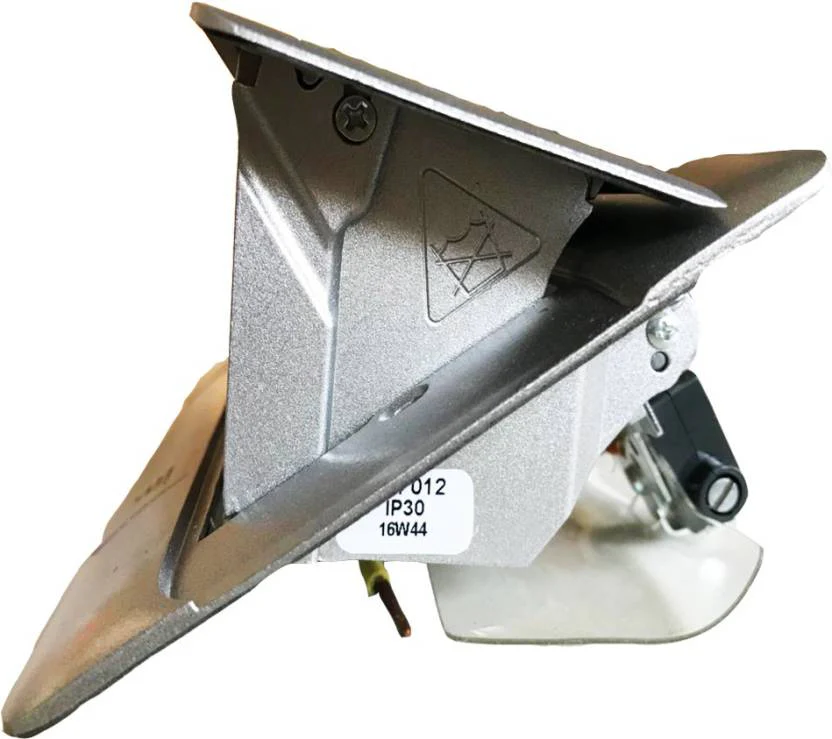

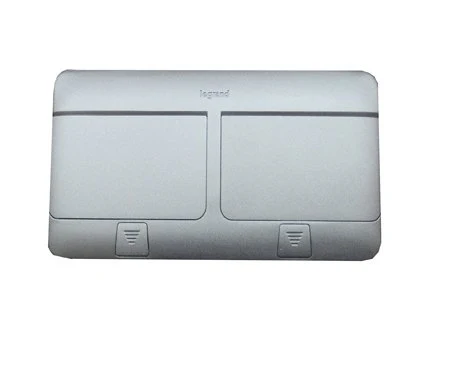

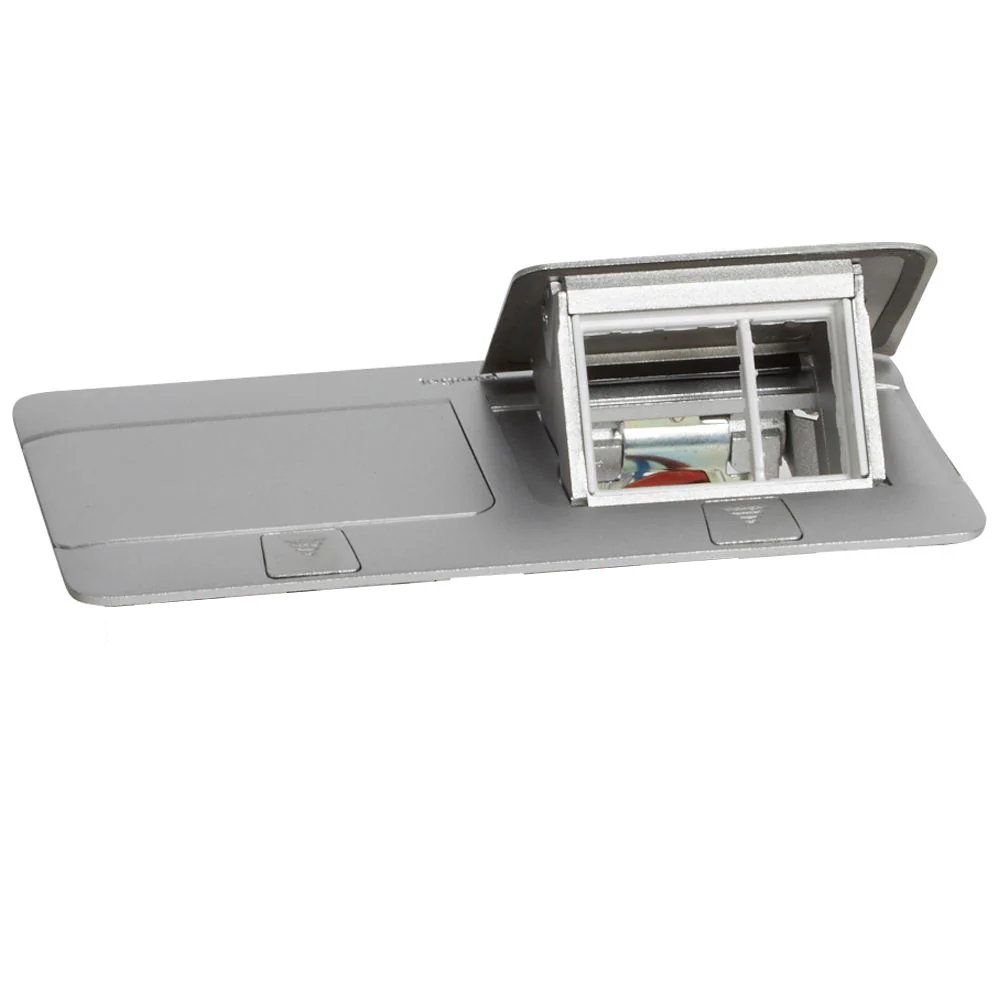

Legrand Popup Box 6 (3x2) Module Matt Aluminium Finish
Pop-up type flush-mounting boxes - for workstation & meeting room table applications
- Can be installed in concrete or raised access floors or integrated directly into the furniture (desks, meeting room tables, etc)
- Conform to IEC 60670-1, IEC 60670-23 et IEC 60884-1
Pop-up boxes to be equipped
- Slim design for perfect integration into the floor or office furniture
- Soft opening for enhanced comfort and safety
- Equipped with "push and slide" locking system to avoid accidental opening by feet
- To be equipped with Mosaic or Arteor socket outlets
- For installation use the flush-mounting boxes for concrete floors or the kits for raised access floors or table top
6 (2 x 3) modules
- Matt Aluminium finish
Technical characteristics
| Model | Built-in |
|---|---|
| Folding | Yes |
| Extendable | No |
| Shape | Rectangular |
| Material | Aluminium |
| Colour | Other |
| Length | 230 mm |
| Width | 120 mm |
| Height | 5 mm |
| Built-in depth | 57 mm |
| Diameter | 0 mm |
|---|---|
| Number of socket outlets with protective contact CEE 7/3 (type F) | 0 |
| Number of HDMI-connections | 0 |
| Number of D-Sub sockets 15-pole | 0 |
| Number of USB connections | 0 |
| Number of audio connections | 0 |
| Number of CAT 5E connections | 0 |
| Number of CAT 6 connections | 0 |
| Over voltage protection | No |
$59.02
Legrand Popup Box 6 (3x2) Module Matt Aluminium Finishā
$59.02
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Pop-up type flush-mounting boxes - for workstation & meeting room table applications
- Can be installed in concrete or raised access floors or integrated directly into the furniture (desks, meeting room tables, etc)
- Conform to IEC 60670-1, IEC 60670-23 et IEC 60884-1
Pop-up boxes to be equipped
- Slim design for perfect integration into the floor or office furniture
- Soft opening for enhanced comfort and safety
- Equipped with "push and slide" locking system to avoid accidental opening by feet
- To be equipped with Mosaic or Arteor socket outlets
- For installation use the flush-mounting boxes for concrete floors or the kits for raised access floors or table top
6 (2 x 3) modules
- Matt Aluminium finish
Technical characteristics
| Model | Built-in |
|---|---|
| Folding | Yes |
| Extendable | No |
| Shape | Rectangular |
| Material | Aluminium |
| Colour | Other |
| Length | 230 mm |
| Width | 120 mm |
| Height | 5 mm |
| Built-in depth | 57 mm |
| Diameter | 0 mm |
|---|---|
| Number of socket outlets with protective contact CEE 7/3 (type F) | 0 |
| Number of HDMI-connections | 0 |
| Number of D-Sub sockets 15-pole | 0 |
| Number of USB connections | 0 |
| Number of audio connections | 0 |
| Number of CAT 5E connections | 0 |
| Number of CAT 6 connections | 0 |
| Over voltage protection | No |
